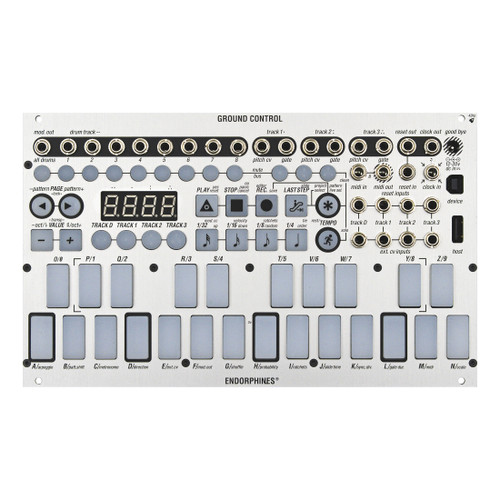

8 DRUM GATE + 3 MELODIC CV/GATE PERFORMANCE SEQUENCER
Ground Control is a powerful performance sequencer for CV/Gate signals, drum triggers as well as MIDI and USB-MIDI devices.
It features X0X, 101, step editing and live play approaches for sequencing and recording. That empowers you to create grooves on the fly with fast polymetric input so you can concentrate on the score without menu diving.
-
eurorack modular polymetric and polyrhythmic performance CV/MIDI/USB-MIDI sequencer / workstation for drums and melodies
-
4 tracks: drum track with 8 triggers and modulation and 3 melodic CV/Gate tracks. Velocity and CC is recorded from external MIDI
-
2 octave keyboard (no velocity or pressure action), play sequences and grooves on the fly or use external USB/MIDI gear or DAW integration or control external MIDI gear
-
arbitrary, up to 64 steps per pattern, 24 patterns per track, 24 projects
-
various record modes: 101-style step input with step editing, live recording and step editor with x0x-style drum editing
-
dedicated mute/solo bus with momentary mute or quantized to pattern length action
-
works also as a power supply for your modular system (same as Shuttle Control) or can be powered by a buss board like any other module
-
arpeggiator, roller, patterns queue, slides, ties/rests, ratchets, transpose
-
music scales easily editable via highlighted keys: chromatic, minor, major, pentatonic etc.
-
external CV modulation matrix: control various sequencer parameters under CV: pattern shift, semitone and octaves offset, shuffle, ratchets, slide, gate length, CV to CC values or pattern change
POWER CONSUMPTION:
-
420 mA +12V
-
0 mA -12V
-
0 mA 5V
MSRP:
-
629 EUR incl. VAT / 719 USD
DIMENSIONS:
-
42 HP
-
25 mm deep
FAQ:
When I press play my sequencer doesn't start running? It seems the sequencer is set to external master clock. Press Tempo > K and select Int or Jack from the list.
After the update I have some notes skip even the probability is set to 0? I have some weird behaviour in general. How can I make a factory reset? After the important updates theere might be some issues for the new file format transfer. If you can - simply delete that project from SD card or only its settings - sequencer will recreate those new files without any bugs. If you wish to make a factory reset - simply format the SD card in your computer and the sequencer will create new files if you save a new project.
How do I know which firmware runs on my Ground Control sequencer? Enter the menu with TEMPO>M(midi)>N and you will see the firmware number on the screen (e.g. 2.00)
Rainbow cable pinout. Side red/brown pair of pins always correspond to -12V similar as with typical gray ribbon cable.
