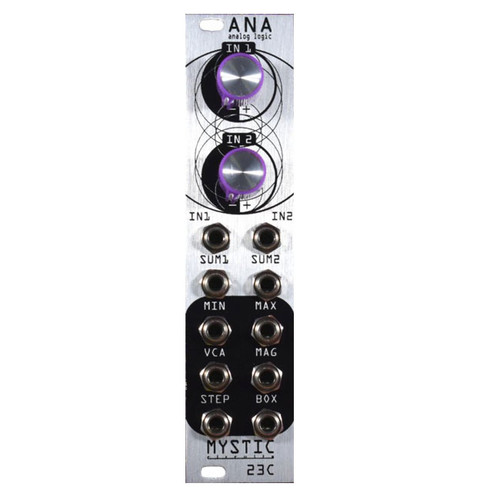

Mystic Circuits ANA Analog logic / CV arithmetics

ANA is a utility module comprising six functions that combine two inputs. These functions are: MIN – compute the minimum of the two input voltages MAX – compute the maximum of the two input voltages VCA – compute the XOR, or multiplication the two input voltages MAG – compute the difference between the two input voltages. STEP – perform a track and hold based smooth/ stepped process from the two inputs BOX – perform a bipolar comparator process resulting in a 3 level square wave. 34 mA +12V 31 mA -12V 0 mA 5V 21 mm deep
