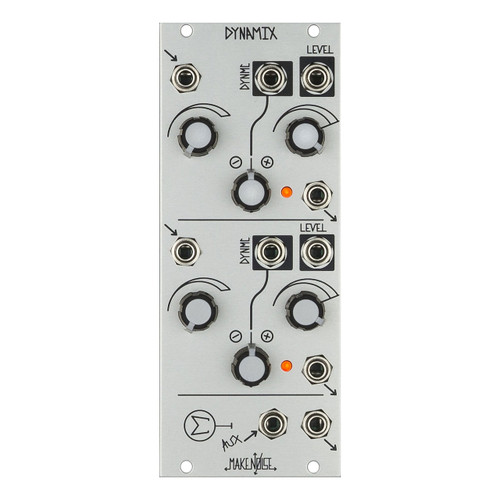

DynaMix is a fast two-channel Low Pass Gate, dynamics manager and mixer, the core of which is derived from our 0-COAST synthesizer. The LEVEL parameter provides simultaneous voltage control over the Amplitude and Frequency content of audio signals, operating as a VCF/A. The DYNMC parameter allows for using audio as a control voltage. It accepts audio signals and converts them into a signal that may increase or decrease the LEVEL parameter thus allowing for side-chaining and ducking. The summing section is complete with an AUXiliary INput allowing for the chaining of multiple MIX units (modDemix, Optomix and RxMx modules) to create large, non-centralized mixes.
features
analog Low Pass Gate with fast response allows for AM synthesis and use with ADSR
Input Signal Attenuator with soft overload at maximum settings
DYNMC IN audio side-chain input for expansion and ducking of signals
Direct Coupled allowing for audio controlled modulation depth when processing CVs
LEDs indicate LEVEL activity
Voltage controlled mixer with AUX IN allows for chaining of multiple units to create larger mixes
Pairs well with Contour, Optomix, modDemix
specifications
Width: 10hpMax Depth: 24mmPower:55mA @+12V45mA @-12V
