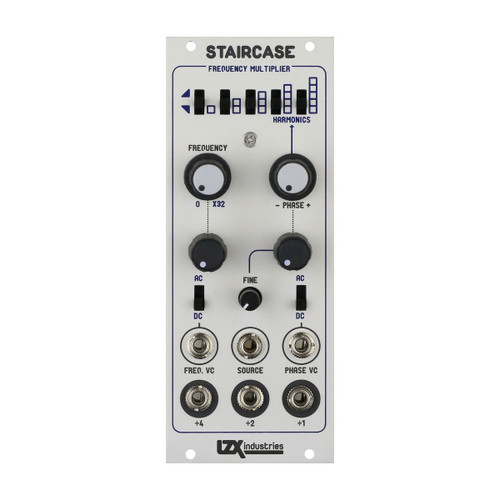

LZX Industries Staircase - Wideband Analog Frequency Multiplier for Video Processing and Pattern Generation

Staircase is a widebandanalog frequency multiplier for video processing and pattern generation. It allows thevideo synthesist to instantly add greater visual complexity to their patches. It can splitan elliptical gradient into a series of concentric rings, solarize an input camera source until the brightness of the signal has wrapped around manytimes, or perform the simple functions of a VCA, mixer, and sawtooth-to-triangle waveshaper. Voltage controlled multiplication of the input frequency up to 32 times. Voltage controlled phase with harmonics selection allows 243 differentvisually rich modulationroutings. Simultaneous output of three differentmultiplication frequencies enables the rapid generation of full color patterns. All signal and control paths perform at high frequency, video rate modulation speeds. AC/DC input coupling switches and inverting level attenuators on voltage control inputs. Weight: 6 oz Dimensions: 6 x 3 x 2 in Width:10HP Mounting Depth:1.25 inches (31.75mm) +12V Power Consumption:70mA -12V Power Consumption:70mA
